Spatial computing is outgrowing the era of blind geometry. Instead of projecting holograms into unstructured voids, modern XR headsets use room semantics to actively parse physical environments into intelligent, recognizable objects. By transforming a raw matrix of polygons into a structured hierarchy of floors, walls, and furniture, developers can anchor autonomous virtual agents, simulate accurate physical collisions, and apply context-aware lighting. This evolution marks the critical shift from passive visual overlays to truly reactive, intelligent interfaces.
Beyond the Mesh: Parsing Raw LiDAR into Semantic Bounding Boxes
The true potential of spatial computing does not lie in merely projecting digital images onto physical environments, but in the hardware’s ability to fundamentally understand the space it occupies. For years, augmented reality has relied on raw geometry—mapping a room by casting thousands of points to figure out where surfaces exist. However, a physical room is not just a collection of intersecting coordinates; it is a highly structured environment filled with distinct, functional items. Transitioning from basic environmental meshing to advanced semantic understanding represents the critical leap required to turn an inert physical space into a reactive, intelligent user interface.
What Is the Difference Between Legacy Spatial Mapping and Structured Semantic Hierarchies?
In the earlier generations of augmented and mixed reality, devices utilized legacy spatial mapping. A raw 3D scan generated by a LiDAR sensor or depth camera is, at its core, a massive array of triangles. When a headset scanned a living room, it did not see a “couch” or a “coffee table.” It only saw a cluster of polygons that a virtual bouncing ball could collide with. Developers were forced to work with invisible collision meshes, relying on blind raycasts to guess the context of the user’s surroundings.
Modern spatial computing platforms have entirely rewritten this paradigm. Through frameworks like Apple’s RoomPlan and Meta’s Scene API, the operating system transitions away from serving developers a monolithic, raw mesh. Instead, these APIs deliver a structured semantic hierarchy. The physical room is parsed into an organized tree of intelligent objects. A developer no longer asks the system, “Did this raycast hit a polygon?” They can now query the system, “Provide a list of all the seats in this room, and give me their exact dimensions and orientations.”
How Do Headsets Use Local Machine Learning to Classify Objects?
Translating a raw point cloud into a semantic hierarchy requires immense computational power and sophisticated artificial intelligence. Because sending raw sensor data to a cloud server introduces unacceptable latency and severe privacy concerns, modern headsets leverage onboard Neural Processing Units (NPUs) to run specialized machine learning models locally.
As the LiDAR sensor maps the depth of the room and the RGB cameras capture the visual textures, these local ML models continuously evaluate the incoming data streams. They analyze the geometry, height, and visual characteristics of the environment to identify architectural boundaries, rapidly classifying surfaces as a Floor, Wall, Ceiling, Window, or Door. Simultaneously, volumetric object detection algorithms identify freestanding furniture, categorizing distinct geometric clusters as a Seat, Table, or Storage unit. This real-time parsing allows the headset to maintain a living, updating ledger of the room’s contents as the user moves through the space.
How Can Developers Extract Semantic Labels Using Unity AR Foundation?
To harness this spatial intelligence within an application, developers rely on abstraction layers like Unity AR Foundation, which standardizes the semantic data provided by the underlying hardware (such as ARKit or ARCore). Within AR Foundation, the environment is broken down into specific trackable managers.
While flat surfaces are handled by the ARPlaneManager (which provides ARPlaneClassification data to distinguish a floor from a ceiling), volumetric objects like furniture are managed by the ARBoundingBoxManager. When the headset’s machine learning model successfully identifies an object, AR Foundation generates an ARBoundingBox trackable. This object contains not just the 3D position and rotation of the item, but its physical dimensions (extents) and, crucially, its semantic label. By subscribing to the event delegates triggered by these managers, developers can execute specific code the exact moment a new semantic object is recognized in the user’s environment.
How Should Developers Handle Machine Learning Confidence Intervals?
A significant challenge in parsing real-world environments is the inherent ambiguity of physical objects. Machine learning models do not operate in absolutes; they operate in probabilities. When scanning a unique piece of modern furniture, the system might generate a confidence interval, indicating it is only 60% certain the detected bounding box is a “Table.”
If a developer writes code that blindly accepts every semantic classification regardless of confidence, the application will exhibit erratic behavior. A low coffee table might be briefly categorized as a “Seat,” or a large dog sleeping on a rug might be classified as a “Footstool.” To build robust XR interfaces, developers must implement strict threshold logic. By querying the confidence value of the semantic label, applications can be programmed to ignore classifications that fall below a specific threshold (e.g., 80%), or assign them an “Unknown” tag until the user walks closer and provides the LiDAR sensor with higher-quality data.
How Do You Implement Semantic Bounding Box Tracking in C#?
Visualizing the transition from invisible data to tangible AR objects is a crucial step in building spatial applications. By writing a script that listens for spatial updates, developers can overlay interactive digital elements perfectly aligned with the physical furniture.
The following C# script utilizes Unity AR Foundation to listen for the trackablesChanged event on the ARBoundingBoxManager. As the headset’s ML models classify the room, the script instantiates a wireframe cube that perfectly wraps the detected physical object, coloring it dynamically based on the semantic label provided by the API.
using UnityEngine;
using UnityEngine.XR.ARFoundation;
using UnityEngine.XR.ARSubsystems;
using System.Collections.Generic;
[RequireComponent(typeof(ARBoundingBoxManager))]
public class SemanticVisualizer : MonoBehaviour
{
[Tooltip("Assign a simple 3D cube prefab with a wireframe material.")]
public GameObject wireframeBoxPrefab;
private ARBoundingBoxManager boundingBoxManager;
private Dictionary<TrackableId, GameObject> spawnedWireframes = new Dictionary<TrackableId, GameObject>();
void Awake()
{
boundingBoxManager = GetComponent<ARBoundingBoxManager>();
}
void OnEnable()
{
// Subscribe to the event that fires when the room scanning detects or updates objects
boundingBoxManager.trackablesChanged += OnBoundingBoxesChanged;
}
void OnDisable()
{
boundingBoxManager.trackablesChanged -= OnBoundingBoxesChanged;
}
private void OnBoundingBoxesChanged(ARTrackablesChangedEventArgs<ARBoundingBox> args)
{
// Handle newly detected semantic objects
foreach (var addedBox in args.added)
{
UpdateWireframeVisualization(addedBox);
}
// Handle updates to existing objects (e.g., the ML model refined the dimensions)
foreach (var updatedBox in args.updated)
{
UpdateWireframeVisualization(updatedBox);
}
// Handle objects that the system has removed or invalidated
foreach (var removedBox in args.removed)
{
if (spawnedWireframes.TryGetValue(removedBox.trackableId, out GameObject existingWireframe))
{
Destroy(existingWireframe);
spawnedWireframes.Remove(removedBox.trackableId);
}
}
}
private void UpdateWireframeVisualization(ARBoundingBox boundingBox)
{
// Instantiate the wireframe if it doesn't exist for this trackable ID
if (!spawnedWireframes.TryGetValue(boundingBox.trackableId, out GameObject wireframe))
{
wireframe = Instantiate(wireframeBoxPrefab, boundingBox.transform);
spawnedWireframes[boundingBox.trackableId] = wireframe;
}
// Match the wireframe scale to the physical dimensions of the real-world object
wireframe.transform.localPosition = Vector3.zero;
wireframe.transform.localRotation = Quaternion.identity;
wireframe.transform.localScale = boundingBox.size;
// Extract the semantic classification and apply the corresponding color
Renderer wireframeRenderer = wireframe.GetComponent<Renderer>();
if (wireframeRenderer != null)
{
wireframeRenderer.material.color = DetermineColorBySemantics(boundingBox);
}
}
private Color DetermineColorBySemantics(ARBoundingBox boundingBox)
{
// Convert the classification to a string to parse the semantic label
string semanticLabel = boundingBox.classification.ToString();
// Apply specific colors based on the AR Foundation classification
if (semanticLabel.Contains("Table"))
{
return Color.green;
}
else if (semanticLabel.Contains("Wall"))
{
return Color.red;
}
else if (semanticLabel.Contains("Seat"))
{
return Color.blue;
}
// Return white for 'None', 'Unknown', or unhandled classifications
return Color.white;
}
}Moving beyond the unstructured chaos of raw polygons is what enables true mixed reality. By parsing LiDAR data into distinct semantic bounding boxes, spatial computing platforms allow developers to treat physical furniture as targetable, programmable variables. This underlying capability forms the foundation of all advanced spatial interactions, ensuring that digital content can finally respect, react to, and augment the physical room with unparalleled accuracy.
Dynamic Pathfinding: Asynchronous NavMesh Baking on Classified Floors
Once an augmented reality headset has successfully partitioned a raw physical room into an organized semantic hierarchy, the environment transcends basic visualization. It becomes a structured arena capable of supporting autonomous digital entities. If an enterprise application relies on a virtual assistant to guide a warehouse worker, or a robotic overlay to highlight maintenance nodes on a factory floor, these digital agents require more than just a visual rendering. They require a navigable pathway. By translating semantic classifications into dynamic pathfinding graphs, developers can grant virtual agents the spatial intelligence necessary to traverse physical rooms with the exact same physical constraints as their human counterparts.
Why Is Semantic Pathfinding Necessary for Virtual Agents?
In early spatial computing experiences, virtual characters operated without a genuine understanding of their surroundings. An AR pet might float awkwardly in the air, clip through a physical sofa, or attempt to walk directly through a solid wall to reach a destination. This occurs because, to a naive digital agent, the entire physical world is simply an empty void unless explicitly defined otherwise.
Semantic spatial mapping solves this by drawing a definitive line between “traversable space” and “impassable boundaries.” Virtual agents cannot intuitively differentiate between a flat, walkable rug and the flat, un-walkable surface of a dining table. By extracting the semantic data mapped by the headset’s localized machine learning models, developers can dictate the rules of gravity and physics for their virtual counterparts. The geometry classified as “Floor” becomes the sole foundation for movement, while objects classified as “Wall,” “Table,” or “Couch” are strictly designated as physical barriers.
How Do We Build Real-Time Spatial Intelligence for AI Agents?
Providing this intelligence requires the generation of a Navigation Mesh (NavMesh). A NavMesh is a highly optimized data structure—a graph of interconnected convex polygons—that defines exactly where an AI agent can legally move. Pathfinding algorithms, such as A* (A-Star), utilize this mesh to calculate the shortest and most efficient route between an agent’s current location and its target destination.
In a traditional video game, a level designer manually bakes a NavMesh over the static terrain before the application is compiled. In spatial computing, the “level” is the user’s living room or workspace, which is scanned and constructed at runtime. Therefore, the application must autonomously generate this NavMesh on the fly. To achieve semantic accuracy, the system is programmed to exclusively overlay this mesh onto planes labeled “Floor.” Concurrently, volumetric bounding boxes classified as furniture are equipped with NavMeshObstacle components. This combination ensures that the generated pathways naturally wrap and carve around physical objects, forcing the digital agent to walk around the physical couch rather than marching through it.
How Do We Utilize Unity’s NavMeshSurface in a Dynamic Environment?
Unity’s AI Navigation package provides a powerful component called NavMeshSurface, specifically engineered to handle dynamic environments. Unlike older, static baking systems, NavMeshSurface can evaluate the active scene hierarchy at runtime and generate a pathfinding graph based on the specific volumes and layers designated by the developer.
To deploy this in an XR application, the NavMeshSurface is configured to target a specific physics layer—for instance, a custom layer named “WalkableAR.” As the headset’s room-scanning API detects new planes and semantically labels them as floors, the application’s logic automatically assigns those specific meshes to the “WalkableAR” layer. When the NavMeshSurface is commanded to bake, it entirely ignores the unclassified geometry and generates a pristine, targeted mesh exclusively over the verified floor space.
Why Is Asynchronous Baking Crucial for XR Performance?
The physical world is not static. A user might push a rolling chair across the room, drop a large box on the floor, or open a previously closed door. When the physical layout changes, the headset’s LiDAR and semantic systems update the spatial map. Consequently, the NavMesh must be rapidly recalculated to prevent the virtual agent from attempting to walk through the newly displaced chair.
Baking a NavMesh is a heavily multithreaded, CPU-intensive mathematical operation. If a developer attempts to update the pathfinding graph synchronously on the application’s main thread, the engine will freeze until the calculation is complete. In an XR headset, even a micro-stutter that drops the frame rate below 90 frames per second can induce severe motion sickness for the user. To maintain a flawless spatial illusion, the baking routine must be asynchronous. By utilizing asynchronous operations, the complex pathfinding calculations are distributed across the device’s secondary CPU cores over the course of multiple frames, allowing the main rendering thread to continue painting the AR scene without a single dropped frame.
How Do We Implement Dynamic Semantic Pathfinding in C#?
Implementing this architecture requires a script that bridges the semantic labeling system with Unity’s AI Navigation framework. The following C# implementation demonstrates how to dynamically gather semantic floors and trigger an asynchronous baking process that protects the headset’s rendering performance.
using System.Collections;
using UnityEngine;
using UnityEngine.AI;
using Unity.AI.Navigation;
[RequireComponent(typeof(NavMeshSurface))]
public class SemanticPathfinder : MonoBehaviour
{
private NavMeshSurface navMeshSurface;
[Tooltip("The tag automatically applied to AR geometry classified as 'Floor'.")]
public string floorSemanticTag = "Floor";
[Tooltip("The designated physics layer used exclusively for the NavMesh generation.")]
public int walkableLayerIndex = 10;
void Awake()
{
navMeshSurface = GetComponent<NavMeshSurface>();
// Configure the NavMeshSurface to explicitly collect only the walkable layer
navMeshSurface.collectObjects = CollectObjects.Volume;
navMeshSurface.layerMask = 1 << walkableLayerIndex;
}
/// <summary>
/// Invoked via an event listener whenever the AR semantic scanner detects a layout change.
/// </summary>
public void RefreshAgentPathways()
{
StartCoroutine(AsyncNavMeshBakeRoutine());
}
private IEnumerator AsyncNavMeshBakeRoutine()
{
// 1. Isolate the target geometry: Find all real-world surfaces classified as Floor
GameObject[] semanticFloors = GameObject.FindGameObjectsWithTag(floorSemanticTag);
// 2. Assign the semantic floors to the designated physics layer
foreach (GameObject floor in semanticFloors)
{
if (floor != null)
{
floor.layer = walkableLayerIndex;
}
}
// 3. Initiate the asynchronous baking process to prevent XR frame drops
AsyncOperation bakeOperation = navMeshSurface.BuildNavMeshAsync();
// 4. Yield execution back to the main thread until the background calculation completes
while (!bakeOperation.isDone)
{
yield return null;
}
Debug.Log("Asynchronous Semantic NavMesh baking complete. Agent pathways updated.");
}
}Granting autonomous movement to digital agents fundamentally bridges the gap between the virtual and the physical. By strictly filtering navigational data through the lens of room semantics, and processing those updates asynchronously, developers ensure that AI behaviors remain logically consistent with the real world. A virtual assistant that knows exactly how to navigate around a physical coffee table to stand beside the user is no longer just an interface element; it becomes a grounded, spatially aware participant in the user’s daily environment.
Semantic Physics Integration: Automating Audio and Bounce via Spatial Classification
The illusion of mixed reality shatters the moment a digital object interacts with the physical world in a way that defies human expectation. Visual fidelity alone cannot sustain immersion; sensory feedback is equally critical. When a virtual bouncing ball drops from the ceiling, a user implicitly expects it to behave differently depending on where it lands. If the ball strikes a soft, carpeted floor, it should yield a muffled thud and immediately lose momentum. If it strikes a rigid glass coffee table, it should emit a sharp clack and rebound energetically. By leveraging room semantics, developers can transcend uniform, generic collisions, assigning distinct, highly accurate physics profiles and audio responses to real-world objects based on their spatial classifications.
How Does Semantic Classification Elevate Sensory Feedback and Immersion?
In standard augmented reality, the physical world is treated as a uniform, invisible collider. A raycast or spatial mesh simply tells the physics engine that a solid surface exists, resulting in a homogenous interaction regardless of the actual material. Semantic classification changes this paradigm by tagging physical geometry with actionable context.
When an XR headset identifies an object as a “Seat” or a “Table,” it provides the crucial metadata needed to simulate material properties. Immersion relies heavily on this multimodal sensory feedback. The human brain constantly cross-references visual information with auditory and physical cues. When an application aligns the virtual physics engine with the expected material properties of the classified physical space, it effectively tricks the brain into accepting the digital object as a tangible part of reality. This automated contextualization allows developers to build rich, interactive environments without manually tagging every surface in a user’s unique room.
How Do Developers Map PhysicMaterials to Real-World Semantics?
To automate this physical realism, developers must dynamically assign specific physical properties to the spatial meshes generated by the headset. In Unity, this is achieved using PhysicMaterial assets, which define the friction and bounciness (restitution) of a collider.
During the scene generation phase, as the AR Foundation framework detects and classifies new planes or bounding boxes, the application intercepts this data. Developers can create a robust architecture by establishing a dictionary that maps specific PlaneClassification enums (or bounding box labels) directly to pre-configured PhysicMaterial assets.
For instance, a dictionary entry might map PlaneClassification.Floor to a “HighFriction_LowBounce” material, representing a carpeted surface. Conversely, PlaneClassification.Table could be mapped to a “LowFriction_HighBounce” material. As the spatial mesh is instantiated over the real world, the script queries this dictionary, retrieves the corresponding PhysicMaterial, and applies it to the MeshCollider. This ensures that any virtual rigid body interacting with that specific area of the room inherently obeys the correct physical laws.
How Is OnCollisionEnter Utilized for Context-Aware Audio?
Physics materials handle the kinetic energy of a bounce, but audio must be handled programmatically at the exact moment of impact. This is where Unity’s OnCollisionEnter method becomes vital.
When a virtual object, such as a ball, collides with the spatial mesh, the physics engine triggers the OnCollisionEnter event. Within this logic, the virtual object examines the collision data to determine exactly what it hit. By retrieving the AR Foundation component attached to the struck surface (such as an ARPlane or ARBoundingBox), the script can extract the semantic tag. Once the tag is identified, the script utilizes a switch statement or another mapping dictionary to select the appropriate audio clip. A “Couch” tag triggers a soft, absorbing sound, while a “Wall” tag triggers a sharp, echoing tap. This logic occurs in milliseconds, ensuring perfect synchronization between the visual impact and the auditory feedback.
What Does the Implementation of Contextual Audio and Bounce Look Like?
To bring this concept to life, the virtual object itself must be programmed to react to the semantic environment. The following Unity C# script is designed to be attached to a virtual sphere containing a Rigidbody and an AudioSource. Upon colliding with the physical room, it interrogates the semantic classification and dynamically alters its own velocity and audio output to match the real-world material.
using UnityEngine;
using UnityEngine.XR.ARFoundation;
[RequireComponent(typeof(Rigidbody))]
[RequireComponent(typeof(AudioSource))]
public class SemanticPhysicsCollider : MonoBehaviour
{
[Header("Audio Profiles")]
[Tooltip("Sound to play when hitting a soft object like a seat.")]
public AudioClip thudSound;
[Tooltip("Sound to play when hitting a hard object like a table.")]
public AudioClip clackSound;
private Rigidbody sphereRigidbody;
private AudioSource audioSource;
private void Awake()
{
sphereRigidbody = GetComponent<Rigidbody>();
audioSource = GetComponent<AudioSource>();
// Ensure the audio source is configured for 3D spatial sound
audioSource.spatialBlend = 1.0f;
}
private void OnCollisionEnter(Collision collision)
{
// Attempt to extract semantic data from the object we collided with.
// We first check for volumetric furniture (ARBoundingBox), then flat surfaces (ARPlane).
ARBoundingBox boundingBox = collision.gameObject.GetComponentInParent<ARBoundingBox>();
if (boundingBox != null)
{
ApplySemanticReaction(boundingBox.classification.ToString(), collision);
return;
}
ARPlane arPlane = collision.gameObject.GetComponentInParent<ARPlane>();
if (arPlane != null)
{
ApplySemanticReaction(arPlane.classification.ToString(), collision);
}
}
private void ApplySemanticReaction(string semanticClassification, Collision collision)
{
// Adjust the sphere's behavior based on the specific semantic tag
if (semanticClassification.Contains("Seat") || semanticClassification.Contains("Couch"))
{
// Simulate striking a soft, energy-absorbing surface
// Dampen the bounce velocity by 80%
sphereRigidbody.velocity = sphereRigidbody.velocity * 0.2f;
// Play the appropriate muffled audio clip
if (thudSound != null)
{
audioSource.PlayOneShot(thudSound, CalculateImpactVolume(collision));
}
}
else if (semanticClassification.Contains("Table") || semanticClassification.Contains("Desk"))
{
// Simulate striking a hard, rigid surface
// Maintain velocity (allow the default physics engine to handle the natural bounce)
// Play the sharp, high-impact audio clip
if (clackSound != null)
{
audioSource.PlayOneShot(clackSound, CalculateImpactVolume(collision));
}
}
}
private float CalculateImpactVolume(Collision collision)
{
// Scale the audio volume based on the relative velocity of the impact
float impactForce = collision.relativeVelocity.magnitude;
return Mathf.Clamp01(impactForce / 10f);
}
}True spatial computing is defined by how seamlessly the digital and physical worlds intertwine. By automating audio generation and kinetic bounce reactions through spatial classification, developers can bridge the sensory gap that often plagues augmented reality experiences. When a virtual object respects the physical density and acoustic properties of a real-world couch or table, it ceases to be a mere graphical overlay. It transforms into a tangible entity, deeply anchoring the user in a cohesive, believable mixed reality environment.
Context-Aware Illumination: Hijacking Semantic ‘Windows’ for HDRP Lighting Estimation
The human visual system is incredibly adept at recognizing when an object does not belong in its environment, and lighting is almost always the determining factor. For years, spatial computing developers have relied on basic light estimation algorithms that merely sample the camera feed’s average brightness and apply a uniform tint or dimming effect to the entire screen. While this prevents a virtual object from glowing unnaturally in a dark room, it fails to anchor the object physically. True visual integration requires shadows that respond dynamically to the physical architecture of the space. By extracting semantic data from the room, developers can identify the exact origins of physical light and hijack these physical portals to cast hyper-realistic virtual shadows.
How Does Legacy AR Lighting Fail to Sell the Illusion?
Standard augmented reality lighting functions as a global wash. When an application utilizes basic ambient light estimation, it adjusts the overall exposure and color temperature of the virtual content based on a single average value derived from the device camera. If the physical room is dim, the virtual object dims.
However, ambient light cannot cast a directional shadow. Without a distinct shadow stretching across the floor or warping over a desk, the human brain registers the virtual object as a flat sticker pasted onto the device’s screen. If a physical desk is bathed in harsh sunlight streaming from an eastern window, but a virtual coffee mug sitting on that desk casts a soft, blurry shadow directly straight down (or casts no shadow at all), the spatial illusion immediately collapses. The discrepancy between the physical light direction and the virtual shadow breaks immersion entirely.
What Is Context-Aware Semantic Illumination?
Context-aware illumination completely bypasses flat, camera-average light estimation by interpreting the room’s physical layout. Instead of guessing where the light might be coming from, the headset uses its onboard machine learning models to definitively locate the sources.
When the spatial API scans the room, it generates a structured semantic hierarchy, specifically classifying objects like “Window,” “Door,” “Screen,” or “Lamp.” By utilizing these specific classifications, the application knows the exact spatial coordinates, dimensions, and orientations of the real-world light ingress points. If a bounding box is classified as a “Window,” the application logically infers that during the daytime, this geometric plane is the primary source of directional sunlight entering the physical room.
How Do Developers Hijack Semantic Windows for Directional Shadows?
To merge the virtual and physical lighting environments, developers mathematically hijack the localized semantic windows. In 3D graphics engines like Unity, a Directional Light simulates the sun; its position in the scene is irrelevant, but its rotation determines the angle of every shadow cast by every virtual object.

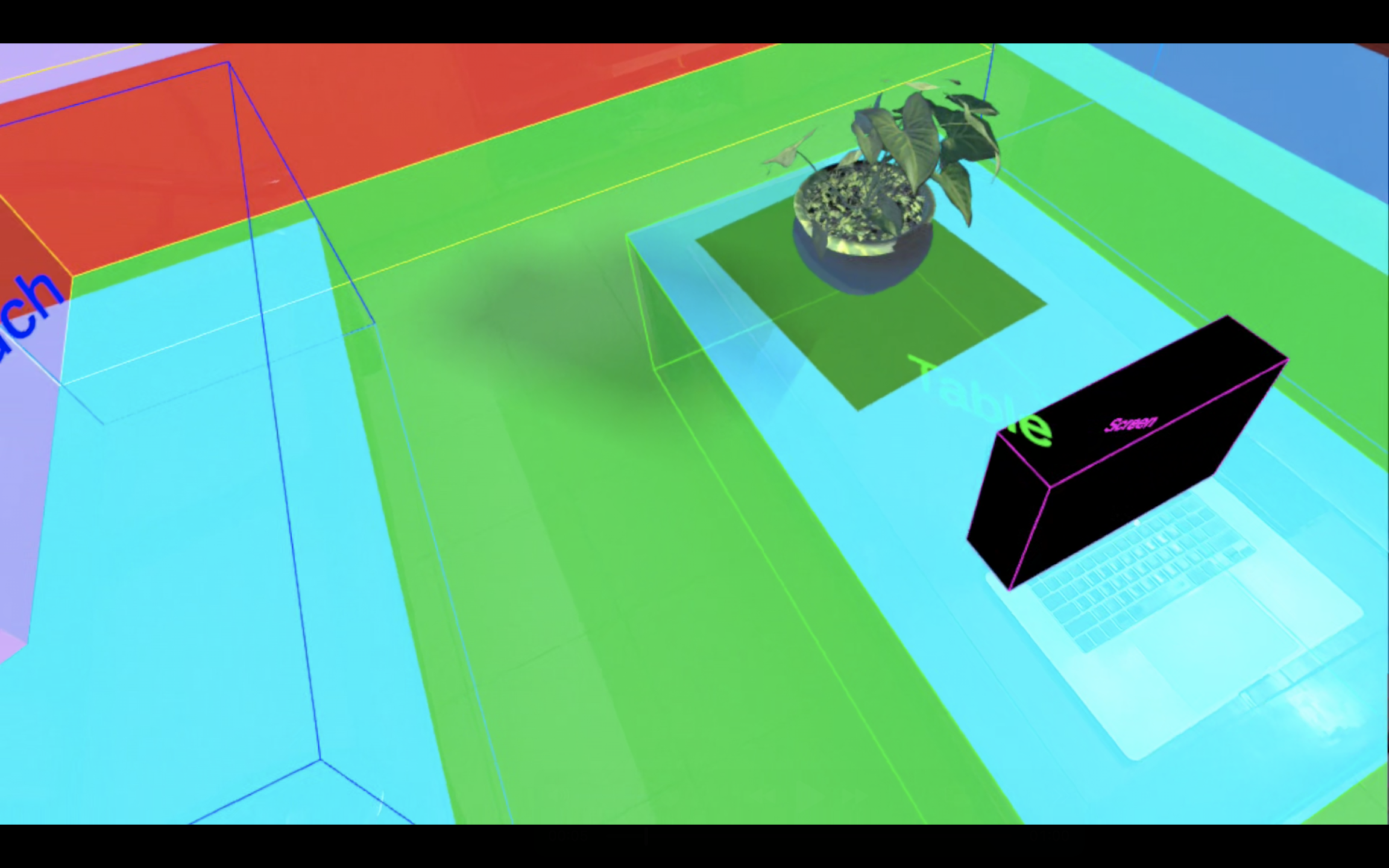

When the headset’s NPU flags an ARBoundingBox as a “Window,” the application parses the bounding box’s transform data. Every bounding box has a local coordinate system. By finding the center of this box and calculating its negative Z-axis (the vector pointing away from the glass and into the interior of the room), developers establish the precise trajectory of the incoming physical sunlight. The engine then programmatically instantiates a virtual Directional Light and aligns its forward vector to perfectly match this inward-facing trajectory.
How Are URP and HDRP Configured for Real-World Shadow Alignment?
Achieving photorealism with these semantic light sources requires the advanced rendering capabilities of Unity’s Universal Render Pipeline (URP) or High Definition Render Pipeline (HDRP). A virtual light source is useless if the shadow it casts falls through the physical floor into an endless void.
To catch these shadows, developers utilize transparent “shadow catcher” materials applied to the semantic “Floor” and “Table” planes generated by the AR session. In HDRP, physical light units (like Lux and Lumens) can be matched to the real world. By pairing the semantic window’s virtual Directional Light with an HDRP shadow-catching plane, the virtual shadows blend flawlessly with the real-world shadows. The virtual light respects the physical boundaries, casting long, dramatic shadows during a sunset or sharp, high-contrast shadows at noon, perfectly synchronized with the lighting conditions outside the physical window.
How Is Semantic Light Ingress Programmed in C#?
Automating this advanced lighting setup requires a script that listens to the spatial API and dynamically spawns light sources whenever a window is detected in the physical space. The following C# implementation utilizes Unity’s AR Foundation to track semantic bounding boxes, filtering for windows and aligning virtual directional lights to cast accurate shadows into the room.
using UnityEngine;
using UnityEngine.XR.ARFoundation;
using UnityEngine.XR.ARSubsystems;
using System.Collections.Generic;
[RequireComponent(typeof(ARBoundingBoxManager))]
public class SemanticWindowLighting : MonoBehaviour
{
[Tooltip("Assign a Directional Light prefab configured for URP/HDRP shadow casting.")]
public Light windowLightPrefab;
private ARBoundingBoxManager boundingBoxManager;
private Dictionary<TrackableId, Light> activeWindowLights = new Dictionary<TrackableId, Light>();
private void Awake()
{
boundingBoxManager = GetComponent<ARBoundingBoxManager>();
}
private void OnEnable()
{
// Subscribe to real-time updates from the spatial machine learning model
boundingBoxManager.trackablesChanged += OnBoundingBoxesChanged;
}
private void OnDisable()
{
boundingBoxManager.trackablesChanged -= OnBoundingBoxesChanged;
}
private void OnBoundingBoxesChanged(ARTrackablesChangedEventArgs<ARBoundingBox> args)
{
foreach (var addedBox in args.added)
{
ProcessWindowLight(addedBox);
}
foreach (var updatedBox in args.updated)
{
UpdateWindowLight(updatedBox);
}
foreach (var removedBox in args.removed)
{
RemoveWindowLight(removedBox.trackableId);
}
}
private void ProcessWindowLight(ARBoundingBox boundingBox)
{
// Strictly filter the semantic hierarchy for Windows
if (boundingBox.classification.ToString().Contains("Window"))
{
if (!activeWindowLights.ContainsKey(boundingBox.trackableId))
{
// Instantiate the virtual light source
Light newLight = Instantiate(windowLightPrefab);
// Align the virtual sunlight to match the physical ingress
AlignLightToWindow(newLight, boundingBox);
activeWindowLights.Add(boundingBox.trackableId, newLight);
}
}
}
private void UpdateWindowLight(ARBoundingBox boundingBox)
{
// Continuously update the light angle if the spatial map refines the window's position
if (activeWindowLights.TryGetValue(boundingBox.trackableId, out Light existingLight))
{
AlignLightToWindow(existingLight, boundingBox);
}
}
private void AlignLightToWindow(Light lightSource, ARBoundingBox windowBox)
{
// Anchor the light source to the physical window's center
lightSource.transform.position = windowBox.transform.position;
// Orient the light to point inward along the negative Z-axis
// This ensures virtual shadows stretch into the room identically to physical shadows
lightSource.transform.rotation = Quaternion.LookRotation(-windowBox.transform.forward);
}
private void RemoveWindowLight(TrackableId trackableId)
{
if (activeWindowLights.TryGetValue(trackableId, out Light existingLight))
{
Destroy(existingLight.gameObject);
activeWindowLights.Remove(trackableId);
}
}
}The alignment of digital shadows with real-world light sources is the ultimate visual anchor in spatial computing. By treating physical windows and screens as programmable origins for high-definition render pipelines, developers eliminate the uncanny valley of floating augmented assets. The virtual objects no longer appear as if they are rendered over the physical space; they appear to exist within it, reacting to the exact same natural forces that illuminate the rest of the room.
Spatial Redaction: Using Stencil Buffers for Zero-Trust Semantic Masking
The implementation of spatial computing in enterprise environments introduces an unprecedented security challenge: the camera feed. While augmented reality relies on continuous optical tracking to map a room, this same optical feed captures proprietary whiteboards, sensitive emails on monitors, and confidential prototypes. In a zero-trust enterprise architecture, it is unacceptable for remote assistance streams or session recordings to transmit this sensitive background data. By weaponizing spatial semantics defensively, developers can transform a privacy liability into an automated security feature, applying localized redaction directly to the physical environment before the data ever leaves the headset.
Why Is Spatial Redaction Critical for Enterprise XR Security?
When an enterprise technician dons an XR headset to perform maintenance on a factory floor, they are effectively walking around with a high-definition recording device strapped to their head. If they engage a remote expert via a video-sharing application, the expert sees everything the technician sees. If the technician glances past a colleague’s workstation, the remote feed might inadvertently broadcast customer data, financial spreadsheets, or unreleased product designs.
Traditional data loss prevention (DLP) software operates on the operating system level, blocking screenshots or restricting file transfers. Spatial computing requires physical DLP. Organizations cannot rely on employees to remember to look away from sensitive information. Spatial redaction eliminates human error by ensuring that the headset’s operating system autonomously censors designated categories of physical objects in real time, maintaining strict compliance with zero-trust security frameworks.
How Does Semantic Understanding Act as a Defensive Mechanism?
Spatial semantics are typically used offensively—to place a virtual vase on a physical table or pathfind a digital agent across a floor. However, the exact same machine learning models that identify a “Table” can also identify a “Screen”, “Monitor”, or “Whiteboard”.
When semantic understanding is deployed defensively, the XR application actively listens for these specific classifications. The moment the Neural Processing Unit (NPU) detects the geometric dimensions of a whiteboard or a laptop screen, the application intercepts those coordinates. Instead of using that semantic bounding box as a surface to place digital content, the application uses the bounding box as a 3D quarantine zone. It wraps the physical object in an opaque virtual material, effectively blinding both the wearer (if desired) and the remote video feed from seeing whatever is written on that specific physical surface.
What Are Stencil Buffers and How Do They Enable Occlusion?
To seamlessly redact a physical object without disrupting the rest of the augmented experience, developers must manipulate the graphics rendering pipeline using Stencil Buffers. A Stencil Buffer is a data array linked to the screen’s pixels, allowing the GPU to determine whether a specific pixel should be rendered, discarded, or overwritten based on custom logic.
In the context of AR, the physical camera feed is rendered as the background. To occlude a specific object, developers write an occlusion shader. This shader instructs the GPU to render a pure black geometric volume over the spatial coordinates of the tracked monitor. By adjusting the shader’s Render Queue and Stencil operations, the developer guarantees that this blackout box renders on top of the physical camera feed but behind critical UI elements (like warning labels or menus), creating a flawless, depth-accurate redaction mask.
How Can You Create an Occlusion Shader Using HLSL?

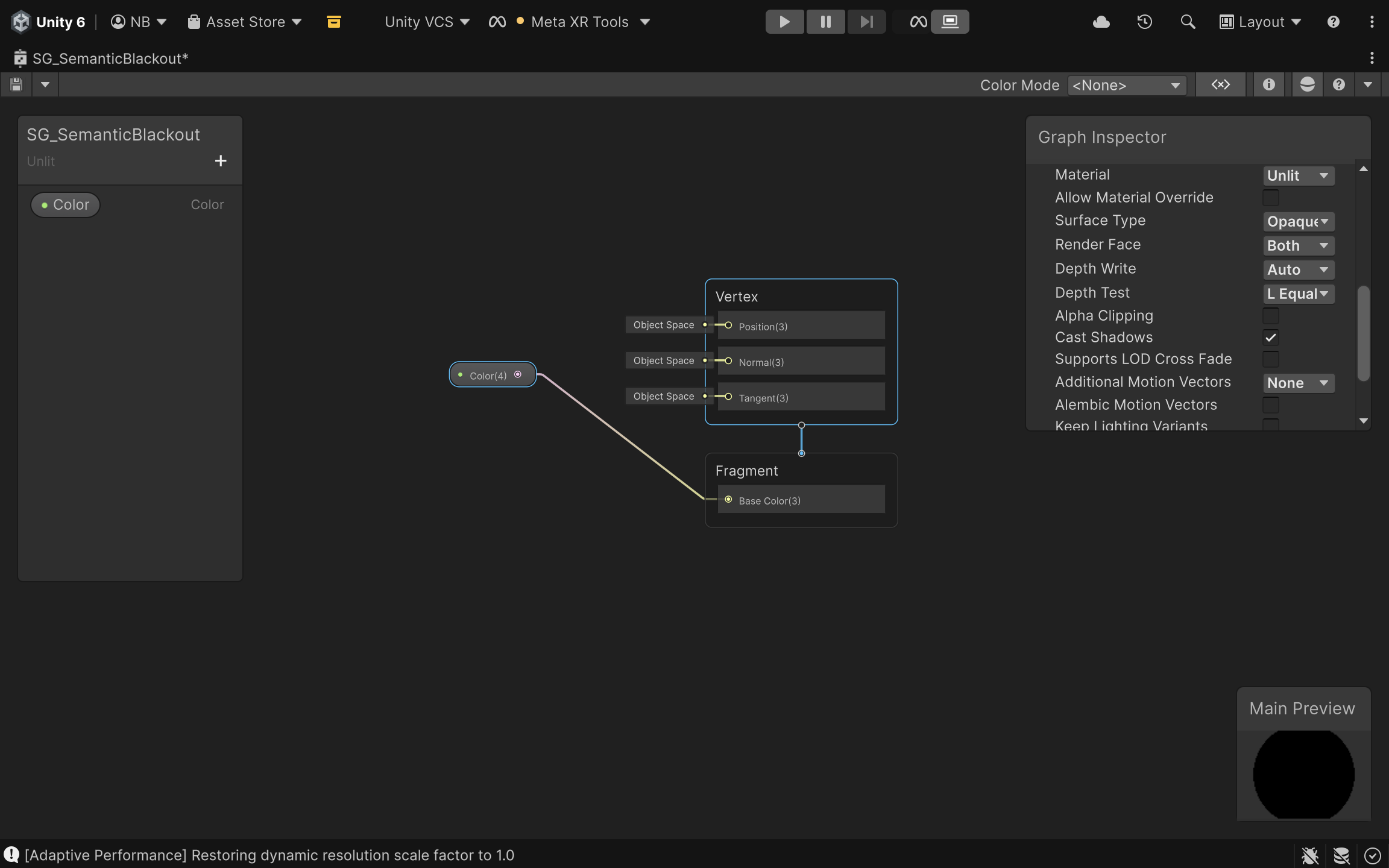

To execute this blackout effect efficiently on mobile XR hardware, developers can utilize a highly optimized Unlit Shader. The following HLSL (High-Level Shading Language) code defines a material that completely strips away lighting calculations, outputting pure black pixels that overwrite the AR camera feed directly at the location of the target bounding box.
Shader "SpatialSecurity/SemanticBlackout"
{
Properties
{
_Color ("Redaction Color", Color) = (0,0,0,1)
}
SubShader
{
// Render after the background camera feed, but before transparent UI
Tags { "RenderType"="Opaque" "Queue"="Geometry+10" }
LOD 100
Pass
{
// Optional Stencil operation to prevent rendering over other specific AR objects
Stencil
{
Ref 1
Comp Always
Pass Replace
}
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
};
struct v2f
{
float4 vertex : SV_POSITION;
};
fixed4 _Color;
v2f vert (appdata v)
{
v2f o;
// Transform the 3D spatial coordinate into 2D screen space
o.vertex = UnityObjectToClipPos(v.vertex);
return o;
}
fixed4 frag (v2f i) : SV_Target
{
// Output absolute black to occlude the physical screen
return _Color;
}
ENDCG
}
}
}How Do You Dynamically Apply Redaction Materials in Unity C#?
With the occlusion shader compiled into a Unity Material, the application must autonomously spawn and fit this material over restricted physical objects. The following C# script leverages Unity AR Foundation to monitor the room’s semantic hierarchy. When a “Screen” or “Whiteboard” is detected, it instantly generates a redaction volume perfectly scaled to the physical threat.
using UnityEngine;
using UnityEngine.XR.ARFoundation;
using UnityEngine.XR.ARSubsystems;
using System.Collections.Generic;
[RequireComponent(typeof(ARBoundingBoxManager))]
public class SemanticRedactionController : MonoBehaviour
{
[Tooltip("A 3D Cube prefab with the SemanticBlackout HLSL material applied.")]
public GameObject redactionVolumePrefab;
private ARBoundingBoxManager boundingBoxManager;
// Dictionary to track actively redacted objects
private Dictionary<TrackableId, GameObject> activeRedactions = new Dictionary<TrackableId, GameObject>();
private void Awake()
{
boundingBoxManager = GetComponent<ARBoundingBoxManager>();
}
private void OnEnable()
{
boundingBoxManager.trackablesChanged += OnTrackablesChanged;
}
private void OnDisable()
{
boundingBoxManager.trackablesChanged -= OnTrackablesChanged;
}
private void OnTrackablesChanged(ARTrackablesChangedEventArgs<ARBoundingBox> eventArgs)
{
// Check newly discovered objects in the room
foreach (var addedBox in eventArgs.added)
{
EvaluateForRedaction(addedBox);
}
// Update the scale/position of the blackout box if the ML model refines the physical dimensions
foreach (var updatedBox in eventArgs.updated)
{
UpdateRedactionVolume(updatedBox);
}
// Remove the blackout box if the physical object is removed from the room
foreach (var removedBox in eventArgs.removed)
{
ClearRedactionVolume(removedBox.trackableId);
}
}
private void EvaluateForRedaction(ARBoundingBox boundingBox)
{
string classification = boundingBox.classification.ToString();
// Target semantic categories known to harbor sensitive enterprise data
if (classification.Contains("Screen") || classification.Contains("Monitor") || classification.Contains("Whiteboard"))
{
if (!activeRedactions.ContainsKey(boundingBox.trackableId))
{
// Instantiate the pure black occlusion volume
GameObject redactionMask = Instantiate(redactionVolumePrefab, boundingBox.transform);
// Match the exact physical dimensions of the monitor/whiteboard
redactionMask.transform.localPosition = Vector3.zero;
redactionMask.transform.localRotation = Quaternion.identity;
redactionMask.transform.localScale = boundingBox.size;
activeRedactions.Add(boundingBox.trackableId, redactionMask);
}
}
}
private void UpdateRedactionVolume(ARBoundingBox boundingBox)
{
if (activeRedactions.TryGetValue(boundingBox.trackableId, out GameObject redactionMask))
{
// Dynamically adjust the blackout mask if the monitor is moved or resized
redactionMask.transform.position = boundingBox.transform.position;
redactionMask.transform.rotation = boundingBox.transform.rotation;
redactionMask.transform.localScale = boundingBox.size;
}
}
private void ClearRedactionVolume(TrackableId trackableId)
{
if (activeRedactions.TryGetValue(trackableId, out GameObject redactionMask))
{
Destroy(redactionMask);
activeRedactions.Remove(trackableId);
}
}
}The integration of spatial computing into highly regulated industries hinges on the ability to guarantee data privacy at the hardware level. By parsing real-time LiDAR and optical data through localized machine learning models, XR applications can identify and neutralize visual security threats before they compromise a network. Semantic redaction transforms the augmented reality headset from a potential surveillance vulnerability into a proactive, intelligent shield, ensuring that enterprise collaboration remains both immersive and unconditionally secure.
Room semantics represent the dividing line between augmented reality as a visual novelty and spatial computing as a practical tool. By empowering headsets to actively comprehend the physical world—differentiating a coffee table from a secure enterprise monitor—we move beyond static holograms. This semantic awareness is the foundation for building digital interfaces that don’t just exist within our spaces, but seamlessly collaborate with them.
